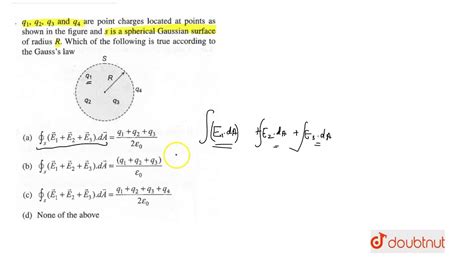

Move point charges around on the playing field and then view the electric field, voltages, equipotential lines, and more. See Figure 6 for a similar situation. Indicate the direction of increasing potential. Sketch the equipotential lines in the vicinity of the negatively charged conductor in Figure 7. How will...Consider for example a point charge q located at the origin. Using the relation between and obtained from Figure 2.7 we can rewrite as. which shows that the field in the overlap region is homogeneous and pointing in a direction opposite to .A). Find The Magnitude Of The Electric Field In N/C At The Location Of Qa, Given That Qb=9.3 Micro Coulomb And Qc = -4.6 Micro Coulomb. A). Find the magnitude of the electric field in N/C at the location of Qa, given that Qb=9.3 micro Coulomb and Qc = -4.6 micro coulomb.Figure 19-7 Forces Between Point Charges. Note: the mass of proton is ~ 2000 times that of the electron ! The attraction electrostatic force between the point charges +8.44c10-6 C and Q has a magnitude of 0.975 N when the separation between the charges is 1.31 m. Find the sign and...Answer:Three identical point charges, Q = 3μC, are placed at the vertices of an equilateral triangle as shown in the figure. The length of each side of the tria… Two equally charged spheres of mass 1.0 g are placed 2.0 cm apart. When released, they begin to accelerate at 779 m/s2.

Lecture Notes Chapter 2

−7 C is located in a field of 27 N/C directed toward the south. What is the force acting SOLUTION: 6. A negative test charge is placed in an electric field as shown in Figure 3. It Page 3 9. What is the magnitude of the electric field at a distance twice as far from the point charge in the previous problem?Problem 26.60 Two 3.0 point charges on 1.0- -long threads repel each other after being equally charged, as shown in the figure. Part A What is the charge ? Express your answer using two significant figures. ANSWER: = 0.75 Problem 26.64 A charge is located at position .Three charges are located along a straight line, as shown below. What is the net electric force on Instead, E = 0 along the line joining the charges but away from the smaller charge, as in the figure The total field at the center of the square is the vector sum of the fields due to each point charge.26: Electric Field due to Multiple Point Charges. INTRO: Two point charges are placed on the x axis. Part A: Calculate the electric field at point A, located at coordinates (0 m, 12.0m). Give the x and y components of the Express your answer in newtons per coulomb to three significant figures.

Solved: In The Figure, The Point Charges Are Located... | Chegg.com

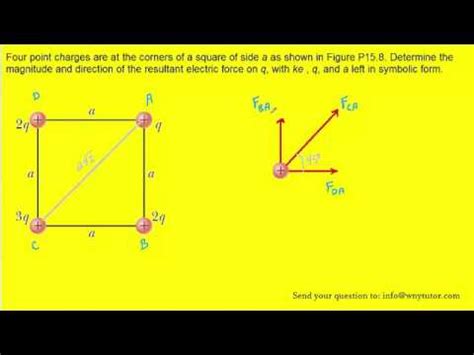

Find the magnitude and direction of the net electric force on the 2.00 μ C charge. Figure P15.13 Problems 13 and 24.2. Three point charges are located at the corners of an equilateral triangle as shown in Figure 1. Calculate the resultant electric force on the 7µC charge. 5. Three charged particles are aligned along the y axis as shown in Figure 4. Find the electric field at P point.The outer charges equal -q and the center charge equals +2q. This arrangement is called a quadrupole because it consists of two dipoles side by side. FIGURE 3.38. (a) Find the electric field intensity at an arbitrary point P a distance R from the positive charge.Three point charges are located on a circular arc as shown in the figure below. (Take r = 4.04 cm. Let to the right be the +x direction and up along the screen be the +ydirection.) E with arrow = _ i hat + _ j hat. (b) Find the electric force that would be exerted on a -4.77ï¿½nC point charge placed at P.(a) Find the electric field at the location of qa. Magnitude N/C Direction ° (counterclockwise from the +x-axis). (b) What is the force on qa, given that qa 402,624 students got unstuck by Course Hero in the last week. Our Expert Tutors provide step by step solutions to help you excel in your courses.

Your link does now not work, however in reality, all we need is the length of the aspects of the equilateral triangle, r.

___A

__/__\

B/____\C

To to find the power on A via B and C, just use coulomb's legislation:

F₁ is the pressure on A through B

F₂ is the force on A by C

F₁=okay(0.3*10^-6)*(7.2*10^-6)/r^2

F₂=okay(0.3*10^-6)*(-3.8*10^-6)/r^2

(we use *10^-6 because we are given µC)

Then you will have to in finding the x an y elements of your forces, add them vectorially, and to find the magnitude of the resultant vector:

y component of drive 1 = F₁sin(60), x part = F₁cos(60)
